CNC Lathe Machine

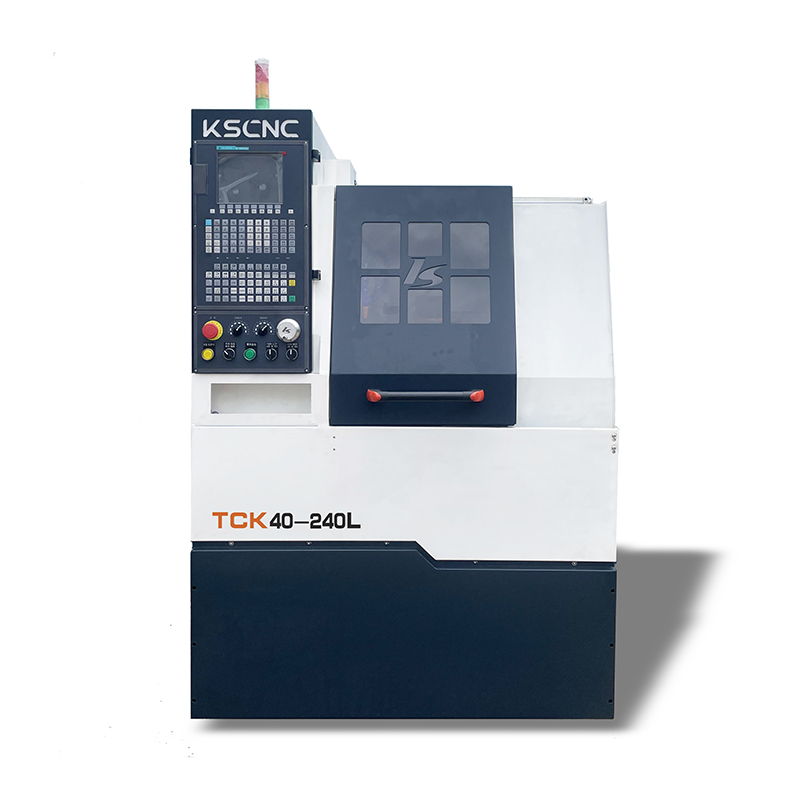

CK40-240L is an excellent Cnc Lathe Machine in our company. Its simple operation and efficient production have been widely accepted by many customers.

Model:CK40-240L

Send Inquiry

Product Description

The Detailed Product Introduction of Cnc Lathe Machine

The customized Cnc Lathe Machine’s Bed frame are made of high quality resin sand, aging rail super audio quenching,good wear resistance,long service life.Centralized lubrication unit, the machine is fully lubricate all moving parts,reduce damage caused by friction.Sheet metal design aesthetics，more conducive to operation.

The Standard Configuration on Cnc Lathe Machine

Spindle：Spindle unit
System：Wind 2000TCEV（Standard）
GSK（Optional）
KND（Optional）
Inverter：SINEE
Linear Guide：CSK
Bearing：HRB
Ball Screw：QIJIAN/QIXUANv Motor：Servomotor

The Parameter On Cnc Lathe Machine

		Unit	CK40-240L			Unit	CK40-240L
Production Capability	Max. swing over bed	mm	φ210	Stroke	X-axis max. trave	mm	240
	Max. swing over cross slide	mm	φ120	Stroke	Z-axis max. trave	mm	240
	Processing length	mm	240	Motor	Servomotor	kw	3.7
	Dia. of the spindle hole	mm	φ40	Other	Clamping mode	N/A	Hydraulic clamping
Spindle	Jig	N/A	Colle t/Chuck		Tool holde	N/A	Cutter arrangement
	Speed range	Rpm	4000		Tool size	mm	20
	End specification	N/A			Number of tool loaded	pcs	6
Feeding	X-axis fast moving speed	m/min	28m		Overall dimensions LWH)	mm
Feeding	Z-axis fast moving speed	m/min	28m		Height(Base to spindle)	mm	1010
Accuracy	X/Z axis repeated positioning accuracy	mm	0.005		N.W	mm

Features On Cnc Lathe Machine

1. Longitudinal and cross feeds are effected by ball lead screws, driven by servo motors;
2. The spindle system is high in the stability and accuracy;
3. Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc., with high efficiency and accurate processing.
