Metal Turning CNC Lathe Machine

Metal Turning CNC Lathe Machine can automatically process the cylinder internal surface , cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.

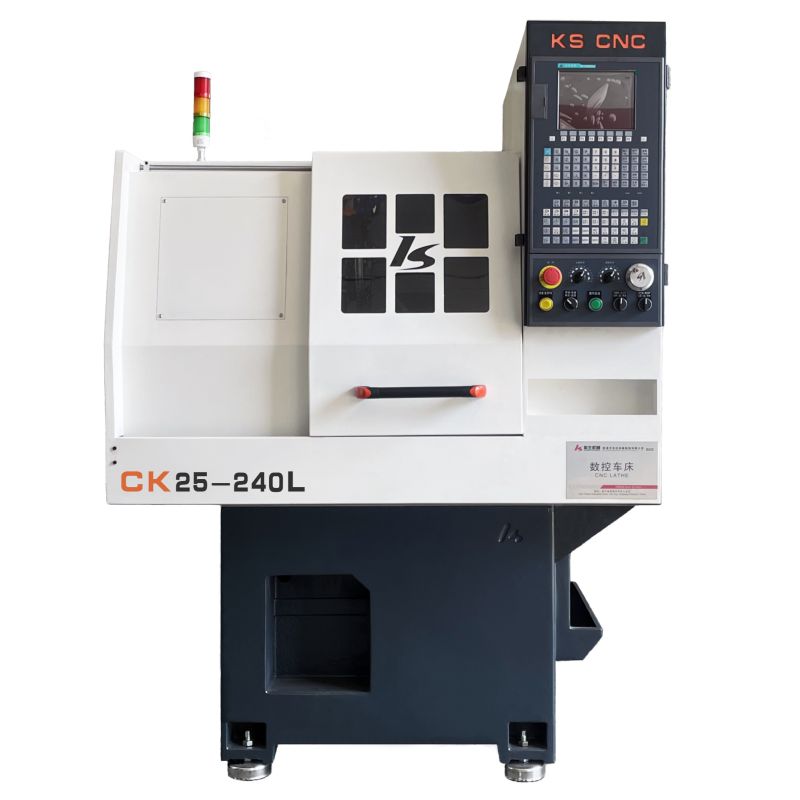

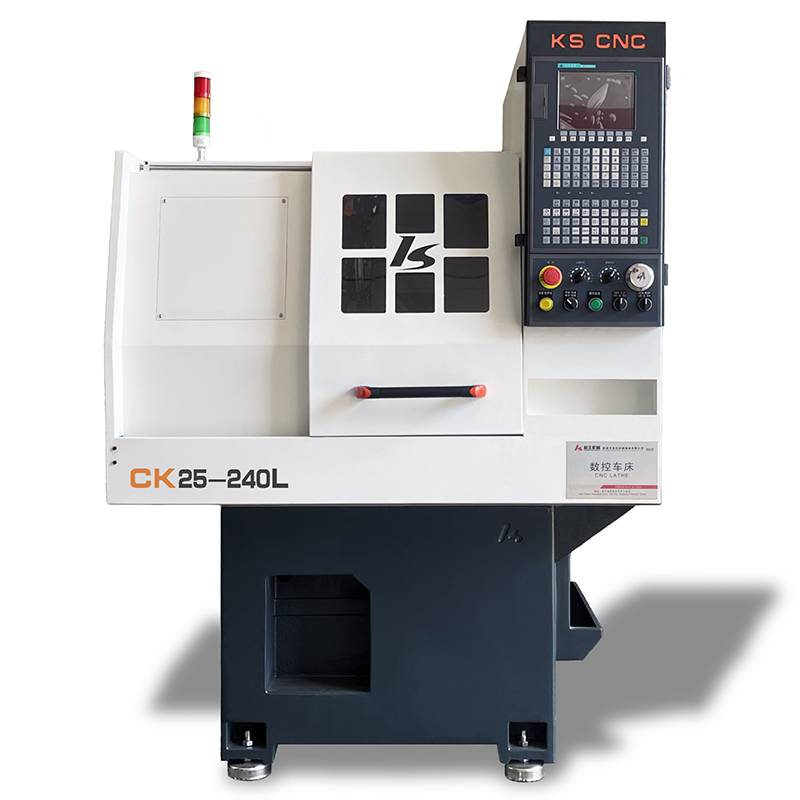

Model:CK25-240L

Send Inquiry

Product Description

The Detailed Product Introduction of Metal Turning CNC Lathe Machine

CK25-240L is a high precision, high performance metal turning CNC lathe machine. The machining accuracy of the machine is stable and consistent, the rigidity of the frame is strong, the motion precision control is accurate, and the high processing efficiency.

The Standard Configuration on Metal Turning CNC Lathe Machine

Spindle：Spindle unit
System：Wind 2000TCEV（Standard）
GSK（Optional）
KND（Optional）
Inverter：SINEE
Linear Guide：CSK
Bearing：HRB
Ball Screw：QIJIAN/QIXUAN
Motor：Servomotor

The Parameter On Metal Turning Cnc Lathe Machine

		Unit	CK15-240L CK25-240L				Unit	CK15-240L CK25-240L
Production Capability	Max. swing over bed	mm	φ210		Stroke	X-axis max. trave	mm	240
	Max. swing over cross slide	mm	φ120		Stroke	Z-axis max. trave	mm	240
	Processing length	mm	240		Motor	Servomotor	KW	1.5
	Dia. of the spindle hole	mm	φ15	φ25	Other	Clamping mode	N/A	Pneumatic clamping
Spindle	Jig	N/A	Collet			Tool holde	N/A	Cutter arrangement
	Speed range	Rpm	100-6000	100-5000		Tool size	mm	16
	End specification	N/A				Number of tool loaded	pcs	6
Feeding	X-axis fast moving speed	m/min	28m			Overall dimensions(LWH)	mm	110010601700
Feeding	Z-axis fast moving speed	m/min	28m			Height(Base to spindle)	mm	1010
Accuracy	X/Z axis repeated positioning accuracy	mm	0.005			N.W	mm	850

Features On Metal Turning CNC Lathe Machine

1. Compact internal body structure, high rigidity, and vibration resistance.
2. Inclined body design will be much easier for scrap removal.
3. Better at general and fast cutting.

Finished products
